51 47 077 Removing and installing/replacing illuminated rocker panel trim on rear left or right entrance (outer)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove REAR LEFT DOOR SILL COVER STRIP

Lift out cover (1) with special tool 00 9 317 in upward direction.

Disconnect plug connection (2).

Remove cover (1).

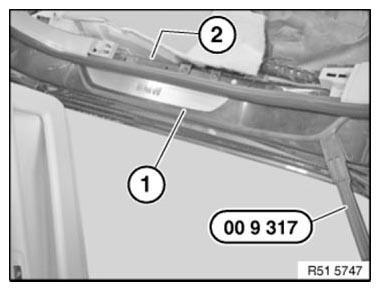

Fig 1: Lifting Rear Left Door Sill Cover Strip Cover Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove clips.

If necessary, lever clips out of entrance with suitable tool.

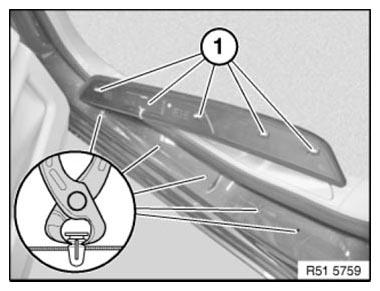

Fig 2: Removing Finishing Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.
