51 47 065 Removing and installing/replacing rocker panel trim on front left or right entrance (outer)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Lift cover panel (2) up and out at clips (1) using special tool 00 9 317 .

Remove cover (2).

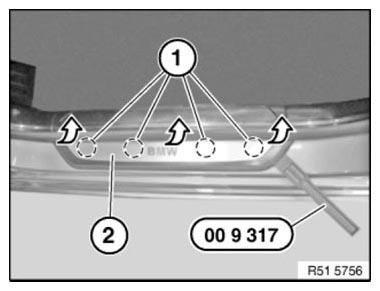

Fig 1: Removing Cover Panel Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, remove clips (1) from entrance with a suitable tool.

Replace faulty clamps (1).

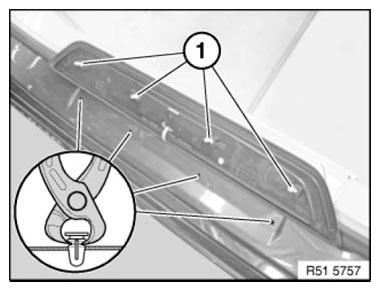

Fig 2: Identifying Finishing Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.
