67 62 020 Removing and installing/replacing flat motor for rear left or right power window unit: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR POWER WINDOW UNIT

Release screws (1) and detach flat motor (2) from power window unit.

Installation:

Retaining pins (3) must not be released!

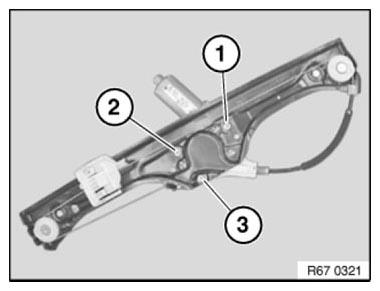

Fig 1: Identifying Power Window Unit Flat Motor, Retaining Pins And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: To ensure tension-free installation of flat motor, observe the specified screwing sequence.

Tighten first screw (1), then screw (2) and finally screw (3).

Tightening torque 67 62 1AZ .

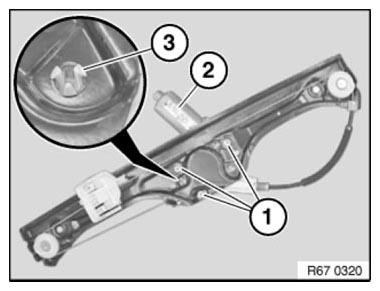

Fig 2: Identifying Power Window Unit Flat Motor And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
