51 14 010 Removing and installing/replacing rear BMW badge

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 322

IMPORTANT: The NOTES on component bonding with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.

Carefully heat BMW badge (1) with hot air blower and lever out with special tool 00 9 322 .

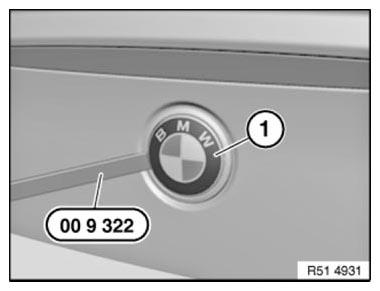

Fig 1: Removing BMW Badge Using Special Tool (00 9 322)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pull liner* off adhesive tape (1).

Position plate over guides (2 and 3) and press down firmly.

* Liner is the protective film on a new badge.

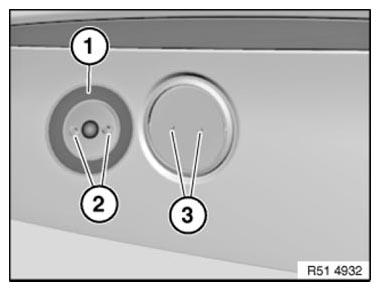

Fig 2: Identifying Adhesive Tape And Badge Over Guides

Courtesy of BMW OF NORTH AMERICA, INC.
