51 14 000 Removing and installing/replacing front BMW badge
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Risk of damage!

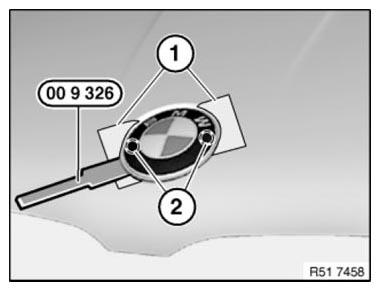

To avoid damaging the paintwork on the engine compartment lid, tape off edge areas (1) to sides of guide pins.
So as not to subject the BMW badge to excessive deformation, lever out the badge with special tool 00 9 326 at guide pins (2).
Installation note:

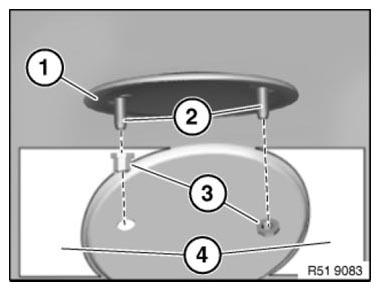

The following components must not be damaged or missing, replace if necessary:
- Badge
- Guide pins
- Grommets
- Adhesive tape as paint protection
