BUZZERS, RELAYS & TIMERS
| Component | Component Location |
|---|---|

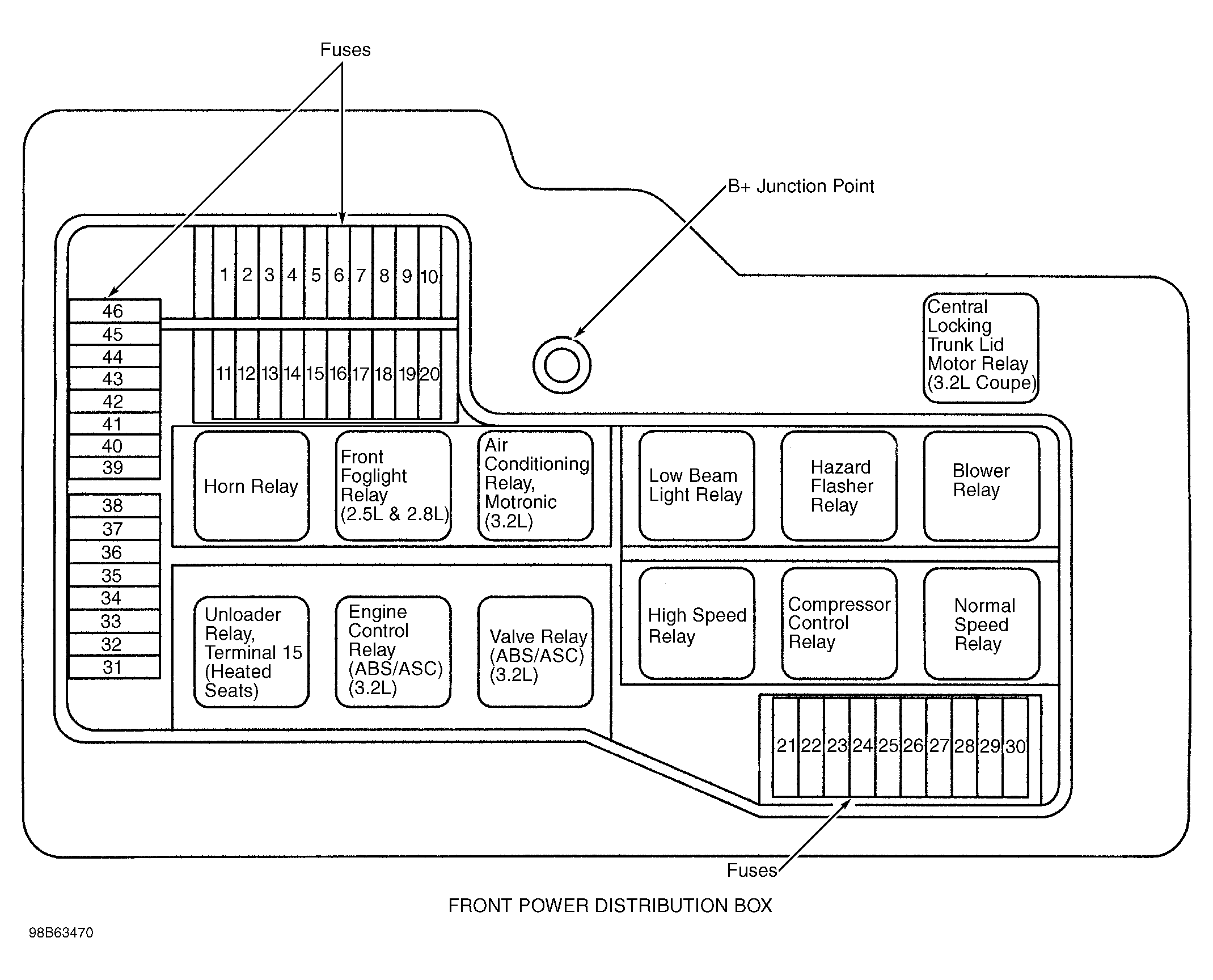

| Air Conditioning Relay, Motronic (3.2L) | In front power distribution box. See Figure . |
| Blower Relay | In front power distribution box. See Figure . |
| Central Locking Trunk Lid Motor Relay (3.2L Coupe) | In front power distribution box. See Figure . |
| Compressor Control Relay | In front power distribution box. See Figure . |
| Convertible Top Relay I (Close) | On left side of luggage compartment. |
| Convertible Top Relay II (Open) | On left side of luggage compartment. |
| Driver's Seat Length Adjust Cut Off Relay | Under left front seat. |
| Driver's Seat Tilt Adjust Cut Off Relay | Under left front seat. |

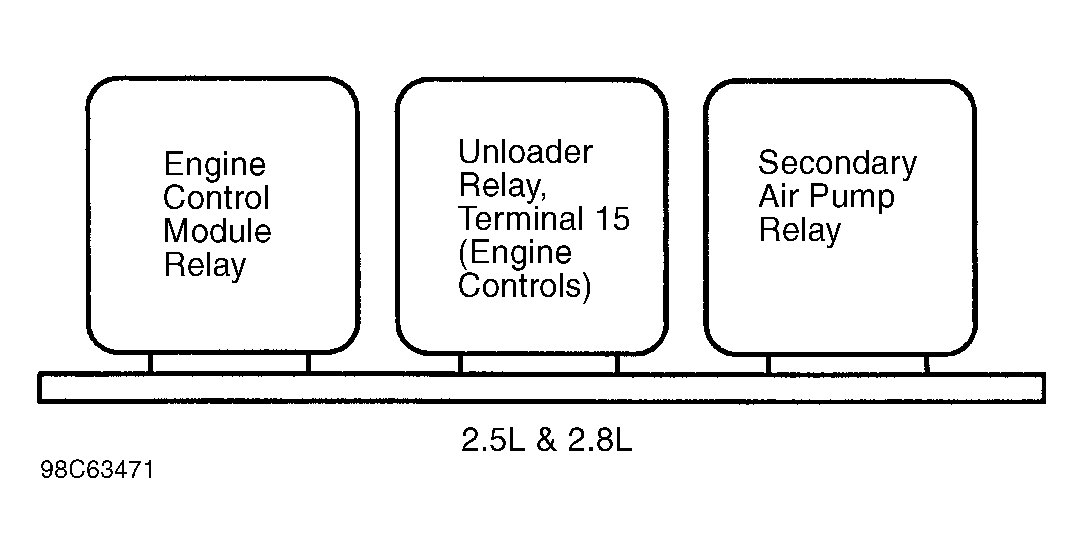

| Engine Control Module Relay (2.5L) | In E-box, on right rear side of engine compartment. See Figure . |
| Engine Control Module Relay (2.8L) | In E-box, on right rear side of engine compartment. See Figure . |

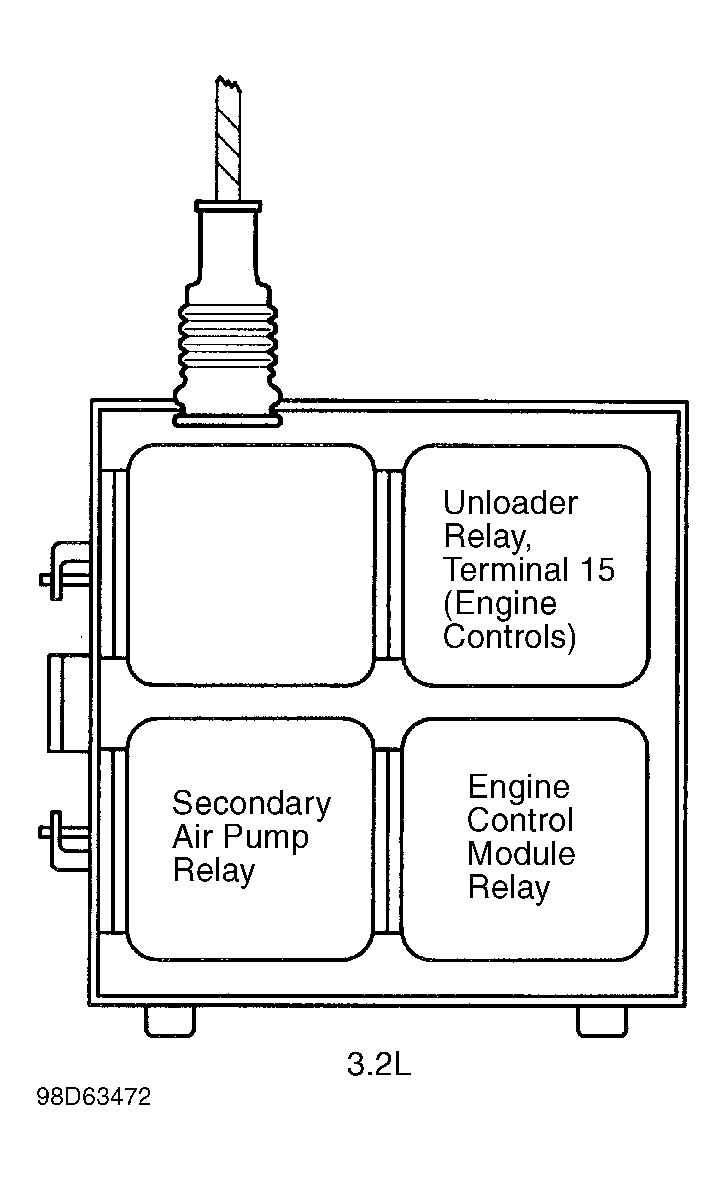

| Engine Control Module Relay (3.2L) | In E-box, on right rear side of engine compartment. See Figure . |
| Engine Control Relay (ABS/ASC) (3.2L) | In front power distribution box. See Figure . |
| Front Foglight Relay (2.5L) | In front power distribution box. See Figure . |
| Front Foglight Relay (2.8L) | In front power distribution box. See Figure . |
| Fuel Pump Relay | On relay panel, under left side of dash. See Figure . |
| Hazard Flasher Relay | In front power distribution box. See Figure . |
| High Beam Light Relay | On relay panel, under left side of dash. See Figure . |
| High Speed Relay | In front power distribution box. See Figure . |
| Horn Relay | In front power distribution box. See Figure . |
| Low Beam Light Relay | In front power distribution box. See Figure . |
| Normal Speed Relay | In front power distribution box. See Figure . |
| Passenger's Seat Length Adjust Cut Off Relay | Under right front seat. |
| Passenger's Seat Tilt Adjust Cut Off Relay | Under right front seat. |
| Secondary Air Pump Relay (2.5L) | In E-box, on right rear side of engine compartment. See Figure . |
| Secondary Air Pump Relay (2.8L) | In E-box, on right rear side of engine compartment. See Figure . |
| Secondary Air Pump Relay (3.2L) | In E-box, on right rear side of engine compartment. See Figure . |
| Unloader Relay, Terminal 15 (Heated Seats) | In front power distribution box. See Figure . |
| Unloader Relay, Terminal 15 (Engine Controls) (2.5L) | In E-box, on right rear side of engine compartment. See Figure . |
| Unloader Relay, Terminal 15 (Engine Controls) (2.8L) | In E-box, on right rear side of engine compartment. See Figure . |
| Unloader Relay, Terminal 15 (Engine Controls) (3.2L) | In E-box, on right rear side of engine compartment. See Figure . |
| Valve Relay (ABS/ASC) (3.2L) | In front power distribution box. See Figure . |
