22 32 055 Removing and installing/replacing transmission bearing block (N74)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove RUBBER MOUNTS FOR GEARBOX MOUNTING .
Release ground cable.

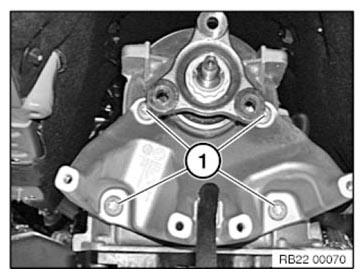

Release screws (1).
Tightening torque 22 32 1AZ .
Remove transmission mounting bracket from transmission.
