24 31 565 Replacing torque converter shaft seal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Avoid skin contact with gearbox oil and inhaling gearbox oil fumes.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT: After completion of work, check GEARBOX OIL LEVEL .
Use only approved gearbox oil: ATF oil Shell L12108 ; BMW part number 83 22 2 152 426 ; 20 liters
Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:

Remove TORQUE CONVERTER .

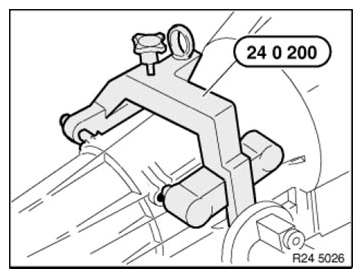

Secure gearbox with special tool 24 0 200 on assembly stand 00 1 450.

NOTE: Read and comply with note on installation of GEARBOX RETAINING BRIDGE .

Fig 1: Securing Gearbox Using Special Tool (24 0 200 And 00 1 450)

Courtesy of BMW OF NORTH AMERICA, INC.

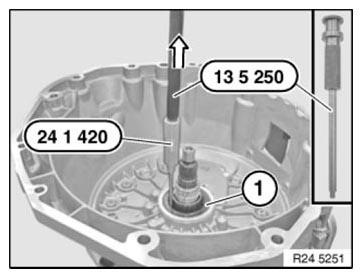

Pull out radial shaft seal (1) with special tools 24 1 420 and 13 5 250 .

Fig 2: Pulling Radial Shaft Seal Using Special Tools (24 1 420 And 13 5 250)

Courtesy of BMW OF NORTH AMERICA, INC.

Oil sealing lip on shaft seal.

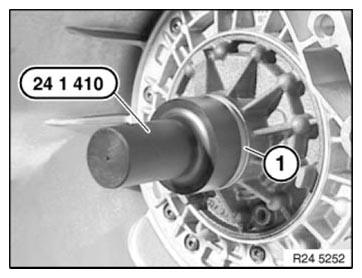

Drive in radial shaft seal (1) with special tool 24 2 410 as far as it will go.

Fig 3: Driving Radial Shaft Seal Using Special Tool (24 2 410)

Courtesy of BMW OF NORTH AMERICA, INC.
