24 34 024 Replacing sealing sleeve for transmission housing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
- It is imperative to avoid skin contact with transmission oil and inhalation of transmission oil vapors.
- Wear protective gloves.
- Ensure adequate ventilation.
IMPORTANT:
After completion of work, check TRANSMISSION OIL LEVEL
.
Use only approved transmission oil: ATF oil Shell L12108 ; BMW part number 83 22 2 152 426 ; 20 liters
Failure to comply with this requirement will result in serious damage to the automatic transmission!
Use only approved transmission oil: ATF oil Shell L12108 ; BMW part number 83 22 2 152 426 ; 20 liters
Failure to comply with this requirement will result in serious damage to the automatic transmission!
Necessary preliminary tasks:
- Remove rear UNDERBODY PROTECTION .
- Remove TRANSMISSION OIL SUMP .
- Remove TRANSMISSION CROSS MEMBER .
IMPORTANT:
Support transmission with workshop jack.
Unlock and disconnect connector (1) by turning.

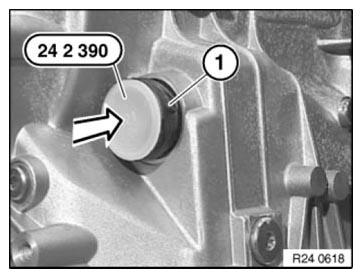

Insert special tool 24 2 390 in sealing sleeve (1).

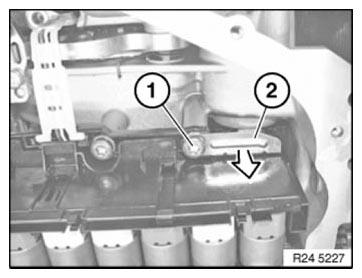

Release screw (1) and unlock sealing sleeve with slide (2).
Tightening torque 24 30 4AZ .
NOTE:
Make a note of installation position of sealing sleeve.

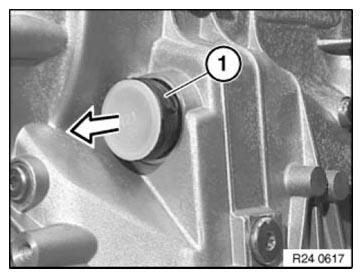

Pull out sealing sleeve (1).
Installation note:

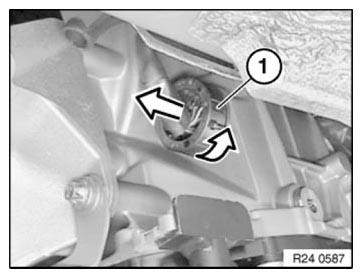

Fit sealing sleeve in position (lug on inner surface). Turn until lug engages in groove of transmission. Slide in sealing sleeve.
Lug on sealing sleeve must not be damaged!
