24 13 016 Replace radial shaft seal for output flange

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Avoid skin contact with gearbox oil and inhaling gearbox oil fumes.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT: After completion of work, check TRANSMISSION OIL LEVEL .
Use only approved gearbox oil: ATF oil Shell L12108 ; BMW part number 83 22 2 152 426 ; 20 liters
Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Remove REAR UNDERBODY PROTECTION
Remove complete EXHAUST SYSTEM
Remove TRANSMISSION CROSS-MEMBER .
Remove PROPELLER SHAFT
Support transmission with lifter.

Release transmission support block from transmission.

Tightening torque 22 32 1AZ .

Grip output flange (1) with special tool 23 0 020.

Release nut with special tool 24 2 380 .

Tightening torque 24 13 1AZ .

Installation note:

Replace nut and secure with a mandrel (8 mm) by caulking.

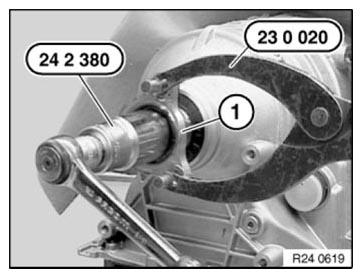

Fig 1: Removing Output Flange Nut Using Special Tool (24 2 380)

Courtesy of BMW OF NORTH AMERICA, INC.

Detach output flange from output shaft.

Remove spacer.

Attach special tool 24 2 353 to output shaft (1).

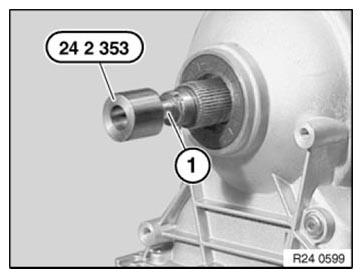

Fig 2: Connecting Special Tool (24 2 353) To Output Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in special tool 24 2 351 until it is firmly connected with radial shaft seal.

Pull out radial shaft seal by screwing in special tool 24 2 352 .

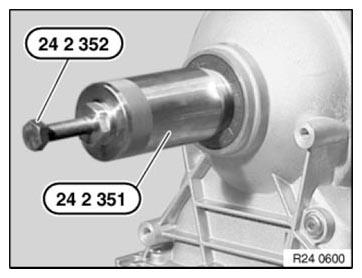

Fig 3: Pulling Radial Shaft Seal Using Special Tool (24 2 352)

Courtesy of BMW OF NORTH AMERICA, INC.

Oil sealing lip of radial shaft seal (1). Drive in radial seal (1) with special tool 24 2 370 and adapter ring 24 2 410 as far as it will go.

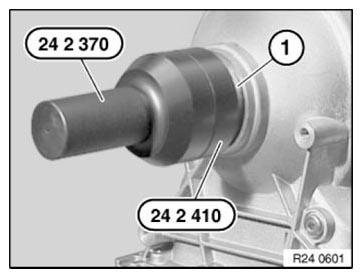

Fig 4: Installing Radial Seal Using Special Tool (24 2 370)

Courtesy of BMW OF NORTH AMERICA, INC.
