Installation location

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

On transmission housing at bottom right.

Unlock plug (1) and remove.

Release screw (2).

Tightening torque: see 3AZ in 13 62 SENDERS FOR CONTROL UNIT

Withdraw pulse generator (3) from transmission housing.

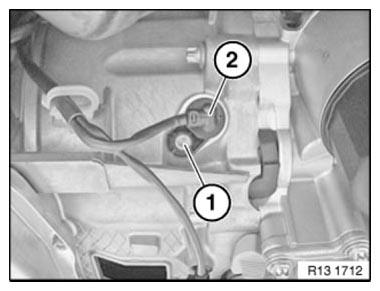

Fig 1: Identifying Transmission Housing Pulse Generator With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Delete fault memory.
