11 34 552 Removing and installing/replacing all valves (N74): Arrangement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
  1. Valve
  2. Valve stem seal with spring plate, bottom
  3. Valve spring
  4. Top plate spring
  5. Valve keys
Fig 1: Identifying Valve, Valve Stem Seal, Keys, Spring And Top Plate Spring
G08469369Courtesy of BMW OF NORTH AMERICA, INC.

Release special tool 11 9 006 from cylinder head.

Remove all valves and place on special tool 11 4 480 in an orderly manner.

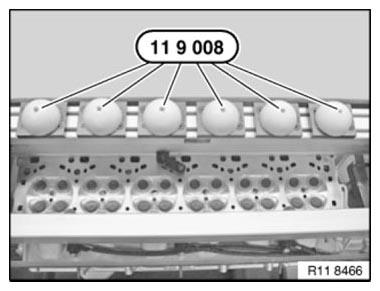

Fig 2: Identifying Special Tool 11 9 008
G08469370Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
