11 65 Connection diagram, vacuum activation (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

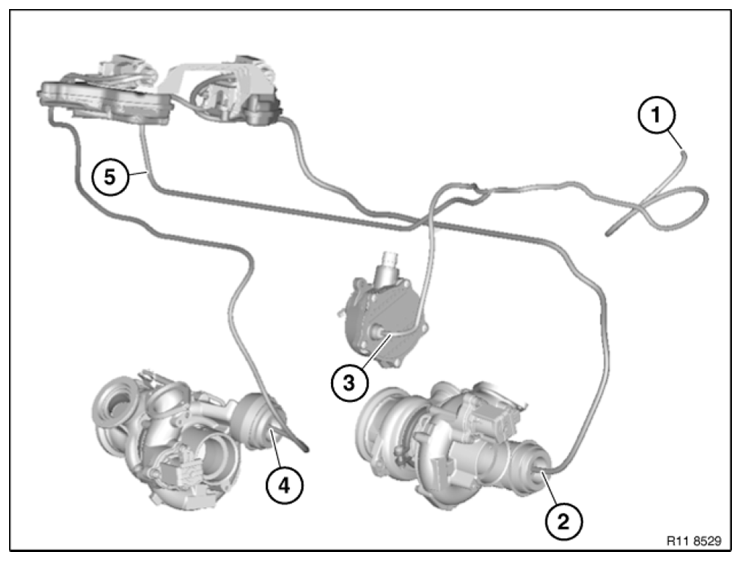

Fig 1: Vacuum Activation - Connection Diagram
G08469520Courtesy of BMW OF NORTH AMERICA, INC.
  1. Connector to the exhaust flaps  .
  2. Connection, vacuum unit (wastegate valve), cylinder bank 2, cylinder pair 7 to 12.
  3. Vacuum line to vacuum pump  .
  4. Connection, vacuum unit (wastegate valve), cylinder bank 1, cylinder pair 1 to 6.
  5. Vacuum line, distributor to vacuum container.

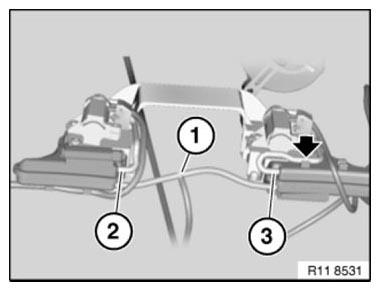

T-piece (1) of vacuum line to the vacuum containers.

Connector (2) vacuum line to electro-pneumatic pressure converter (EPDW), cylinders 7 to 12, VAC connection.

Connector (3) vacuum line to electro-pneumatic pressure converter (EPDW), cylinders 1 to 6, VAC connection.

Fig 2: Identifying Vacuum Line To Electropneumatic Pressure Converter Connector And T-Piece
G08469521Courtesy of BMW OF NORTH AMERICA, INC.
