11 65 010 Removing and installing/replacing pressure accumulator (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove acoustic cover

Disconnect plug connection at charging pressure sensors (1).

Release cable strap holder (2) at pressure accumulator.

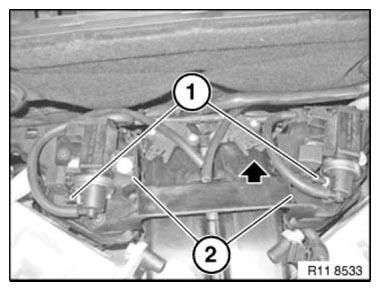

Fig 1: Identifying Charging Pressure Sensors And Cable Strap Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip vacuum line for brake servo at pressure accumulator.

Disconnect vacuum lines (1) on electro-pneumatic pressure converter (EPDW) OUT for wastegate valves.

Pull off pressure accumulator (2) on left and right upwards in the direction of the arrow.

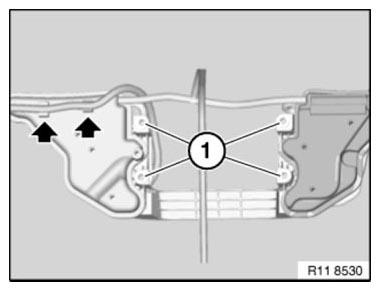

Fig 2: Identifying Pressure Accumulator And Vacuum Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect vacuum line (1) to vacuum pump at pressure accumulator on left and right.

Installation note:

If necessary, modify the electro-pneumatic pressure converter (EPDW).

Connections (2 and 3) at vacuum container to the pressure converter connector (VAC).

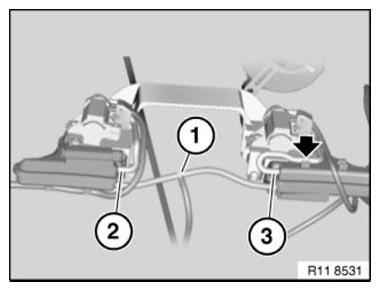

Fig 3: Identifying Vacuum Line To Electropneumatic Pressure Converter Connector And T-Piece

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check installation position of left-hand vacuum line.

Make sure rubber grommets (1) are not damaged and are in the right position.

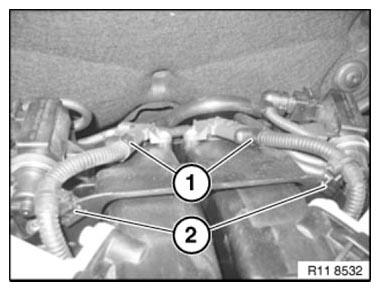

Fig 4: Identifying Rubber Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

Check vacuum connections for correct routing.

Check vacuum system for leaks.

Assemble engine.
