11 33 062 Removing and installing/replacing all hydraulic valve clearance compensating elements (HVC) (N74)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove all ROCKER ARMS .

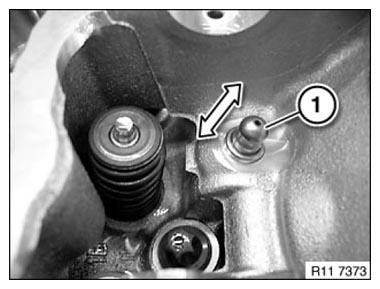

Remove hydraulic valve clearance compensating elements (1) in direction of arrow.
If the compensating elements are to be reused, set then down in neat order in special tool 11 4 480.
Assemble engine.
