11 78 530 Replacing left control sensor (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Scalding hazard!

Only perform this work after engine has cooled down.

Necessary preliminary tasks:

Check function of DME control unit.
Switch off ignition.
Remove PRESSURE PIPE .

Release plug connector (1) and pull off.

Unclip control sensor cable (2) at retaining clips.

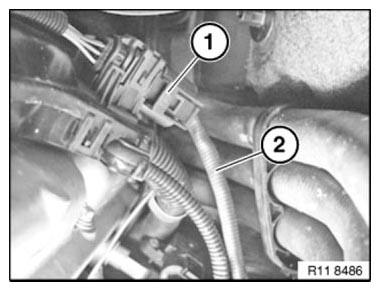

Fig 1: Identifying Plug Connector And Control Sensor Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Release control sensor with special tool 11 7 020.

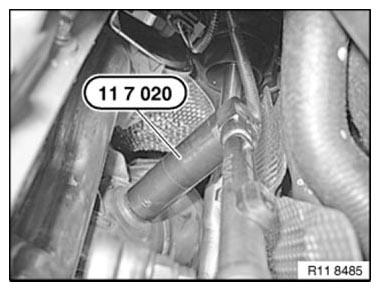

Fig 2: Releasing Control Sensor Using Special Tool 11 7 020

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The threads of new lambda control/monitoring sensors are already coated with Never Seez Compound (refer to BMW Parts Department).

If a lambda control/monitoring sensor is to be reused, apply a thin and even coating of Never Seez Compound to the thread only.

The part of the lambda control/monitoring sensor which projects into the exhaust branch (sensor ceramics) must not be cleaned and not coated with lubricant.

Secure control sensor with special tool 11 7 020 and a torque wrench (1).

Tightening torque: see 1AZ in 11 78 EMISSIONS CONTROL, CONTROL SENSOR / MONITORING SENSOR

Fig 3: Securing Control Sensor Using Special Tool 11 7 020

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check function of DME control unit.

Pay attention to cable routing of control sensor.
