Cylinder head disassembled

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Check evenness of cylinder head sealing face with a standard straightedge (1).

NOTE: Maximum plane deviation: longitudinal 0.10 mm.

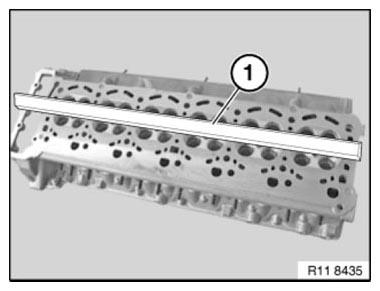

Fig 1: Checking Cylinder Head Sealing Face Evenness Using Standard Straightedge

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Maximum plane deviation: transversal 0.05 mm.

Machining limit: see HEAD/VALVES/GUIDES/BEARINGS TECHNICAL DATA and VALVE SEAT TECHNICAL DATA .

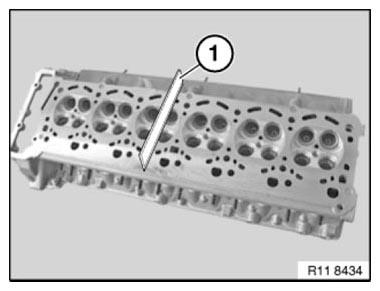

Fig 2: Checking Cylinder Head Maximum Plane Deviation Using Standard Straightedge

Courtesy of BMW OF NORTH AMERICA, INC.

A cylinder head gasket (+REP) 0.3 mm thicker than usual can be obtained for machined (resurfaced) cylinder heads.

Fig 3: Identifying Gasket (+REP)

Courtesy of BMW OF NORTH AMERICA, INC.
