11 33 054 Removing and installing/replacing rocker arms on right side (N74)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
(cylinder bank 1 to 6)
Necessary preliminary tasks:
- Remove right INTAKE CAMSHAFT .
- Remove right EXHAUST CAMSHAFT .
IMPORTANT:

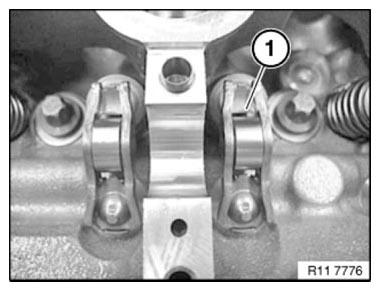

Used rocker arms (1) may only be reused in the same position.
Tolerance classes are not required.
Remove rocker arm (1) and set down in a tidy and orderly fashion in special tool 11 4 480.
Install rocker arm (1).
Align all rocker arms (1) straight.
Assemble engine.
