64 51 530 Removing and installing/replacing expansion valve for rear air conditioner
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR AIR CONDITIONER

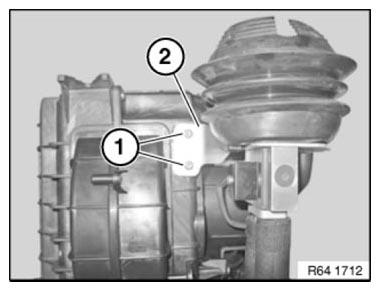

Release screws (1) on flange holder (2).
Installation:
Make sure flange holder (2) is correctly seated in associated guide on rear air conditioner housing.

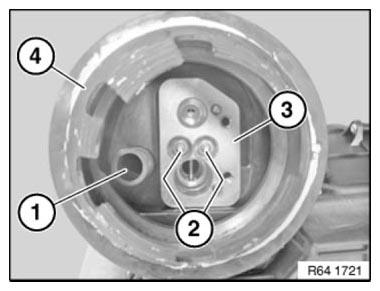

Pull condensation water drain hose (1) out of gaiter (4).
Unscrew nuts (2).
Remove flange (3) incl. holder and gaiter (4).
Installation:
Valve openings must be fully exposed and must not be covered either by flange (3) or the flange holder.

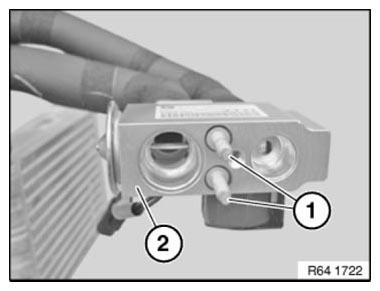

Release screws (1) and carefully remove expansion valve (2).
Tightening torque 64 53 6AZ .
Installation:
Replace sealing rings.
Use special tool 00 9 030 to mount sealing rings without damaging them.
