64 11 206 Removing and installing/replacing heating and air-conditioning unit: Recycling

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Coolant emerges when coolant lines are detached. Have a suitable collecting vessel ready.

Catch and dispose of escaping coolant.

Observe country-specific waste disposal regulations.

Feed out line feed-through (1) towards top.

Fig 1: Identifying Feed Out Line Penetration

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove refrigerant lines (2) with associated gasket.

Tightening torque 64 53 1AZ .

Installation note:

Replace sealing rings.

Use special tool 00 9 030 to mount sealing rings without damaging them.

Fig 2: Identifying Refrigerant Lines And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Connections must not be mixed up!
Mark connection sequence of water hoses prior to removal.

Release hose clamps (1) with special tool 17 2 050 and detach coolant hoses (2).

Fig 3: Identifying Coolant Hoses And Hose Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Carefully blow out coolant ports on the heat exchanger to remove the remaining coolant.
Close openings or line to heat exchanger with special tool 32 1 270 , to avoid media leak and dirt contamination.

Equipment specification with electric auxiliary heater only:

Release screw (1).

Remove grounding cable for electric auxiliary heater (2) from floor trim panel (3).

Fig 4: Identifying Electric Auxiliary Heater Earthing Cable, Floor Trim Panel And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

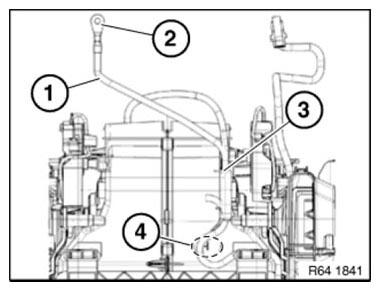

NOTE: Length of earthing cable (1) must lie between points 2 and 3 and should be 230 mm to 235 mm long.
Run excess cable as shown in item (4).

Fig 5: Identifying Earthing Cable, Earthing Cable Points And Cable Item

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retaining lug (1) on gaiter (2).

Lever gaiter (2) out of guides.

Installation note:

Make sure retaining lug (1) and adjacent guides are correctly latched.

Fig 6: Identifying Lock Retaining Lug On Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Protect passenger compartment against emerging coolant.

Unclip air ducts (2), left and right towards bottom, from heater/air conditioner (1).

Feed out heating and air-conditioning unit (1) in direction of arrow.

Installation note:

Water drain (3) must be inserted on both sides into outlet channel (4).

Fig 7: Feeding Out Heating And Air-Conditioning Unit In Direction

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: In the event of incorrect fitting, there is a risk of leakage in the passenger compartment!
