64 53 551 Removing and installing/replacing capacitor for air conditioning system (N74): Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury!
Refrigerant circuit is under high-pressure!
Follow safety precautions when handling refrigerant. See safety instructions for HANDLING R 134A REFRIGERANT , HANDLING TETRAFLUORETHANE REFRIGERANT R134A , and HANDLING REFRIGERANT OIL .
Avoid contact with refrigerant and refrigerant fluid.

IMPORTANT: Risk of damage!
Restart engine only when A/C system has been correctly filled.
Follow INSTRUCTIONS for opening and replacing parts in refrigerant circuit.
If air conditioning system is opened for more than 24 hours: replace DESICCANT INSERT FOR AIR CONDITIONING SYSTEM

Necessary preliminary tasks:

NOTE: Diagrams are examples

Unclip fan cowl (1) at clamps (2) on left and right, feed out in upward direction and loosen from cooler package cover.

Fig 1: Identifying Fan Cowl And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on left and right from cover (3).

Tightening torque 17 10 1AZ .

Release screws (2) behind sealing lip.

Tightening torque 17 10 1AZ .

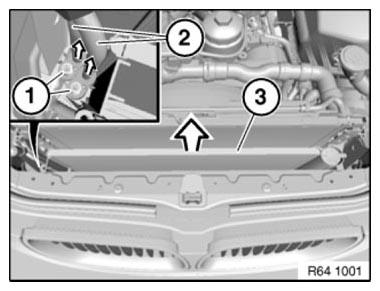

Lift out cover (3).

Fig 2: Identifying Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 64 53 3AZ .

Remove heating and air conditioning lines (2) in direction of arrow and place to one side.

Installation note:

Replace sealing rings.

Use special tool 00 9 030 to install sealing rings without damaging them.

Fig 3: Removing Heating And Air Conditioning Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out capacitor (3).
