64 52 524 Removing and installing/replacing A/C system compressor (N74): Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Release screw (1).

Tightening torque 64 52 1AZ .

Remove high pressure line (2).

CHANGE OIL of compressor.

Installation note:

Replace sealing rings.

Use special tool 00 9 030 to mount sealing rings without damaging them.

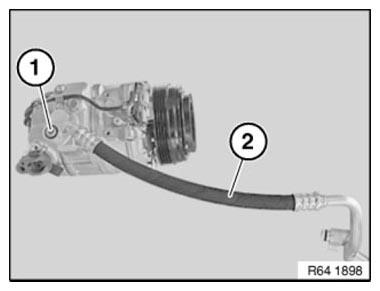

Fig 1: Identifying Screw And High Pressure Line

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

EVACUATE AND FILL A/C SYSTEM
