34 41 135 Replacing both Bowden cables for parking brake: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Tightening torque: see 5AZ in 34 41 PARKING BRAKE .

Pull Bowden cable (1) out of actuator unit (2).

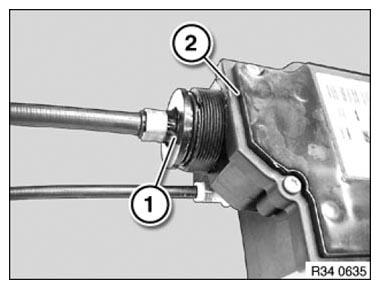

Fig 1: Identifying Bowden Cable And Actuator Unit

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Make sure all parts are absolutely clean.

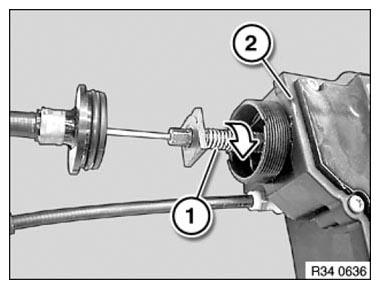

Fig 2: Turning Spindle Out Of Actuator Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Turn spindle (1) out of actuator unit (2) and remove Bowden cable.

Installation:

Lubricate new spindle with grease provided.

Insert spindle (1) 3 turns into inner spline shaft of actuator unit (2).
