Mobile brake disc lathe

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Only BMW-approved brake disc lathes may be used!

In the case of mobile brake disc lathes, the brake calipers and brake anchor plates must be removed.

The brake discs remain on the vehicle.

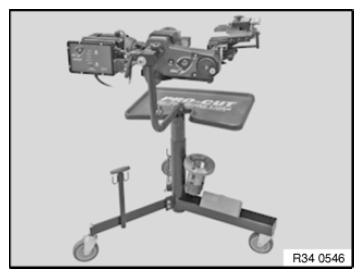

Fig 1: Identifying Mobile Brake Disc Lathes

Courtesy of BMW OF NORTH AMERICA, INC.

Please refer to the equipment manufacturer's operating instructions for the exact procedure.

After fine-grinding the brake discs, measure the THICKNESS DIFFERENCE inside the braking surfaces at 8 points with an caliper gauge.

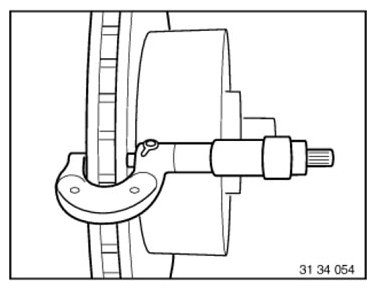

Fig 2: Measuring Thickness Difference Within Brake Surfaces Using Micrometer Gauge

Courtesy of BMW OF NORTH AMERICA, INC.
