34 00 010 Checking thickness of brake pad

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The thickness of the outer brake pads can be determined without removing the wheels.

If necessary, move vehicle until opening for brake pad wear indicator (brake pad) can be seen through rim styling.

Insert special tool 34 1 260 wheel rim into opening for brake pad wear indicator.

Press special tool onto brake pad. Slide ring (1) in direction of arrow up to stop and read off measured value.

NOTE:

Brake disc
Brake pad with backplate

REMAINING BRAKE PAD THICKNESS OF FRONT BRAKE .

REMAINING BRAKE PAD THICKNESS OF REAR BRAKE .

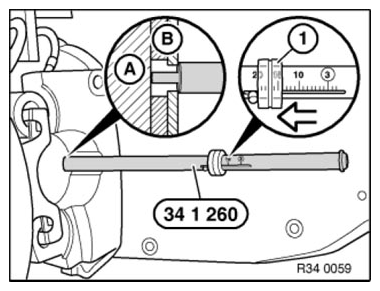

Fig 1: Inserting Special Tool 34 1 260 Wheel Rim Into Opening For Brake Pad Wear Indicator

Courtesy of BMW OF NORTH AMERICA, INC.
