61 31 334 Removing and installing or replacing grip cover for gear selector switch

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Carefully unclip cover (1) using special tool 00 9 322 on points (2) from gear selector switch (3) and remove in the direction of arrow.

Fig 1: Removing Gear Selector Switch Cover Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanism (1) must not be damaged or missing.

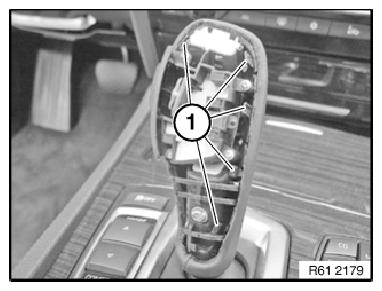

Fig 2: Identifying Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanism (1) and guide (2) must not be damaged or missing.

Fig 3: Identifying Latch Mechanism And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
