33..... Overview of rear axle final drive/output shafts

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

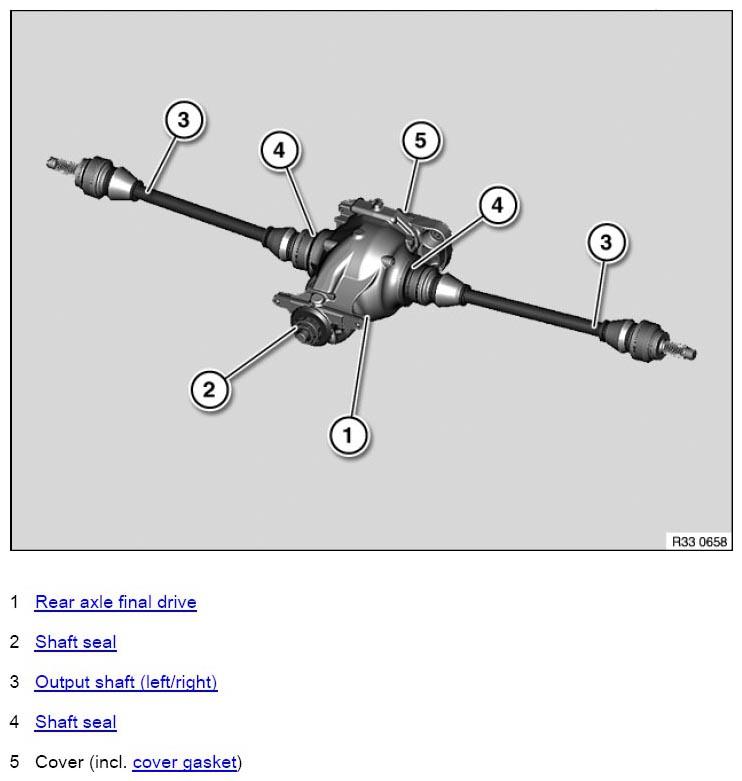

Fig 1: Identifying Rear Axle Final Drive/Output Shafts Components
G08470520Courtesy of BMW OF NORTH AMERICA, INC.

Safety instructions & general information. See SAFETY INSTRUCTIONS FOR HANDLING OIL and CHECKING/TOPPING UP REAR DIFFERENTIAL OIL .
