33.... Overview of steering links

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

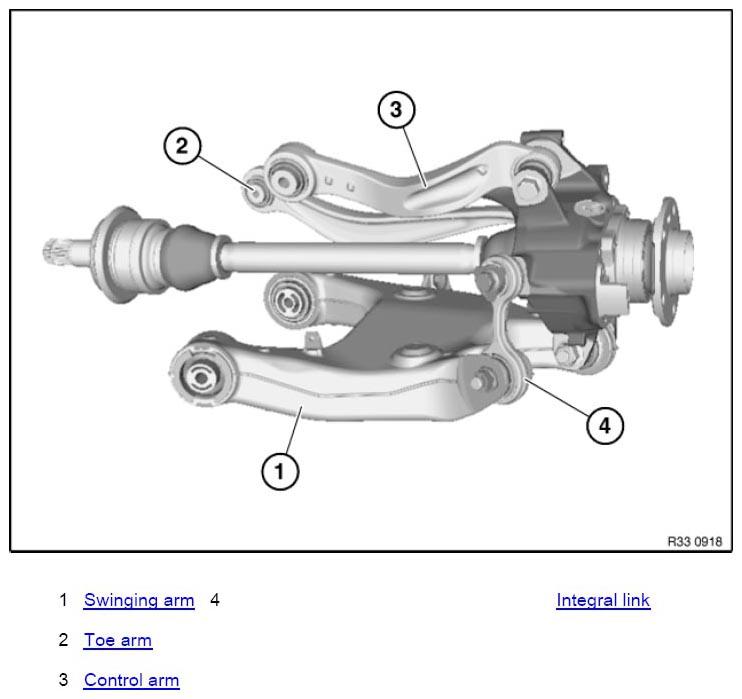

Fig 1: Identifying Swinging Arm, Integral Link, Toe Arm And Control Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Safety precautions & general information: see LIFTING THE VEHICLE USING A VEHICLE HOIST or RAISING VEHICLE WITH TROLLEY JACK
