33 32 180 Removing and installing/replacing left or right toe arm: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the toe arm is detached from the rear axle support, it will be necessary to carry out a wheel alignment procedure after assembly. See ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .

Necessary preliminary tasks:

Remove REAR WHEEL .

F01, F02:

Release nut (1) and remove heat shield (2).

Tightening torque: see 10AZ in 33 32 TRAILING ARMS AND STRUTS

Installation note:

Replace self-locking nut.

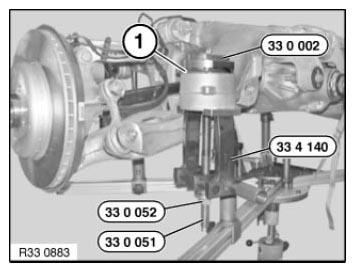

Fig 1: Identifying Heat Shield And Nut

G06851032

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cable holder (1) from toe arm, if applicable.

Installation note:

Replace faulty cable clips.

Fig 2: Releasing Collar Nut

G06889869

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: see 6AZ in 33 32 TRAILING ARMS AND STRUTS

Pull out bolt (1) and remove toe link (2).

Installation note:

Tighten down screw connection in NORMAL POSITION .

Fig 3: Identifying Toe Link And Bolt

G06851028

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque: see 7AZ in 33 32 TRAILING ARMS AND STRUTS

Remove toe link (2) from wheel carrier.

Installation note:

Insert toe link (2) first in wheel carrier.

Keep toe link to wheel carrier connection clean and free from oil and grease.

Replace nut.

Fig 4: Identifying Toe Link And Slacken Nut

G06851030

Courtesy of BMW OF NORTH AMERICA, INC.
