32 34 020 Removing and installing/replacing airbag unit
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe the following instructions to avoid any risk of injury by the airbag unit.
- Comply with SAFETY REGULATIONS for handling components with gas generators.
- Do not exert any force on the airbag unit.
- Use only specified tools for releasing the airbag unit.
NOTE:
Incorrect handling may result in triggering of the airbag unit and thereby cause serious injury.
IMPORTANT:
Steering wheel must be replaced if airbag unit has been triggered.
See STEERING WHEEL or SPORT STEERING WHEEL .
Follow PROCEDURE AFTER AIRBAG DEPLOYMENT .
See STEERING WHEEL or SPORT STEERING WHEEL .
Follow PROCEDURE AFTER AIRBAG DEPLOYMENT .
Necessary preliminary tasks:
- Disconnect BATTERY EARTH LEAD

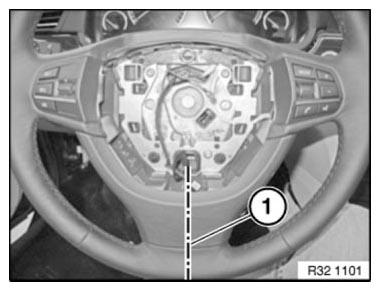

Insert Torx screwdriver T30 (1) straight into concealed opening on reverse side of steering wheel until a spring resistance is felt (approx. 2 cm).
Increase pressure on spring leg using Torx screwdriver T30 (1) until airbag unit is released.
For purposes of clarity: airbag unit removed.
Installation note:
Fig 1: Inserting Torx Screwdriver T30 Straight Into Concealed Opening On Reverse Side Of Steering Wheel
Make sure electrical leads are correctly positioned.
Snap airbag unit with uniform pressing force plane-parallel in direction of steering column shaft into steering wheel.
WARNING:
Danger of injury!
Airbag unit may only be set down with the airbag itself facing upwards .
Airbag unit may only be set down with the airbag itself facing upwards .
Tilt airbag unit towards rear.

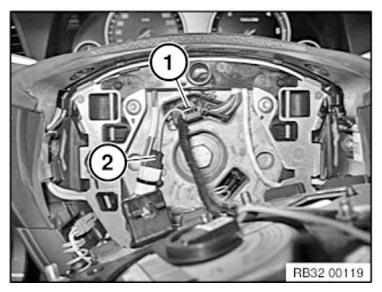

Disconnect plug connection (1) and (2) and remove airbag unit.
