On replacement, assemble new part with gaiter
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

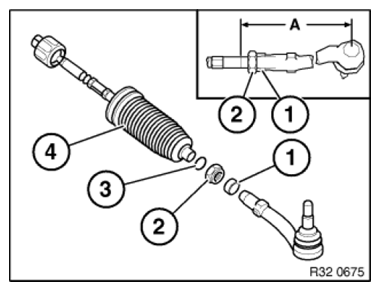

- Determine dimension (A) on used part to simplify following adjustment of front axle
- Slacken clamping nut (2)
- Screw off track rod end; if necessary, grip track rod with open-end spanner
- Remove clamping ring (1) and screw off clamping nut (2)
- Slide gaiter (4) and ear clamp and band clamp (3) onto track rod
- Slide clamping nut (2) and clamping ring (1) onto track rod
- Screw track rod end onto track rod to dimension (A)
- Tighten down clamping nut (2) Tightening torque 32 21 2AZ .
