32 21 231 Replacing (removing and installing) left or right track rod: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
The steering box must be replaced if the polished surface of the rack is damaged (e.g. by corrosion)!
Necessary preliminary tasks:
- Remove stiffening plate (only M5)
- Remove TRACK ROD END FROM SWIVEL BEARING
- Remove GAITER FROM STEERING BOX and slide back
IMPORTANT:
To avoid damage to rack and to suspension mounting, move rack in as far as possible.

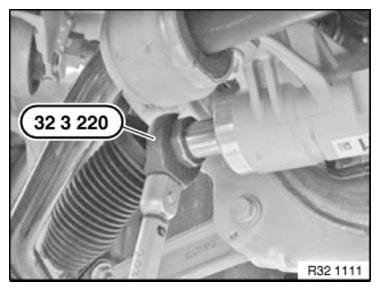

Unscrew track rod with special tool 32 3 220 from rack of steering box.
Installation note:
Clean rack.
Check surface of rack for damage (e.g. corrosion).
Grease rack (refer to OPERATING FLUIDS ).
Tightening torque 32 21 1AZ .
