32 41 280 Removing and installing/replacing oil reservoir N74: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
DANGER OF POISONING
if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Seal off hydraulic lines with seal plugs.
Seal off hydraulic lines with seal plugs.
Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid from oil reservoir
- Remove ACOUSTIC COVER
- Remove left INTAKE PORT

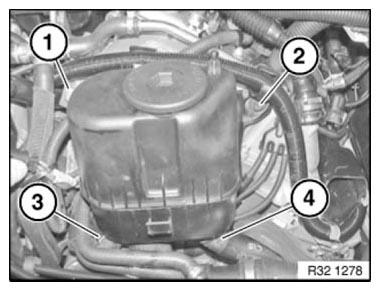

Release screws (1) and (2).
Tightening torque 32 41 21AZ
Open hose clamps (3) and (4) and detach lines.
Unlock plug connections on oil level sensor and disconnect.
Remove container.
Installation note:
Replace hose clamps.
