32 41 037 Removing and installing power steering pump for hydraulic steering gear with Dynamic Drive (N74): Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When replacing power steering pump:
Oil reservoir must be replaced in event of metal abrasion, sluggish pump shaft or increased contamination!
The filter integrated in the fluid reservoir can only absorb a limited amount of foreign particles. If the filter clogs, the hydraulic system can no longer be sufficiently protected.
Metal abrasion is perceived in the fluid reservoir as metallically glittering hydraulic fluid.
It is only necessary to replace the fluid reservoir because of leaks (e.g. at hose connections) only in the event of the unavoidably high ingress of dirt.
Oil reservoir must be replaced in event of metal abrasion, sluggish pump shaft or increased contamination!
The filter integrated in the fluid reservoir can only absorb a limited amount of foreign particles. If the filter clogs, the hydraulic system can no longer be sufficiently protected.
Metal abrasion is perceived in the fluid reservoir as metallically glittering hydraulic fluid.
It is only necessary to replace the fluid reservoir because of leaks (e.g. at hose connections) only in the event of the unavoidably high ingress of dirt.
WARNING:
DANGER OF POISONING
if oil is ingested/absorbed through the skin!
DANGER OF INJURY if oil comes into contact with eyes and skin!
DANGER OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Do not draw off hydraulic fluid (risk of contamination).
Do not draw off hydraulic fluid (risk of contamination).
Necessary preliminary tasks:
- Remove hydraulic steering gear. See HYDRAULIC STEERING GEAR or ACTIVE FRONT STEERING HYDRAULIC STEERING GEAR .

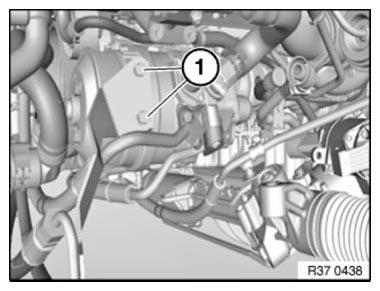

Release screws (1) and remove holder from power steering pump.
Tightening torque 32 41 16AZ .

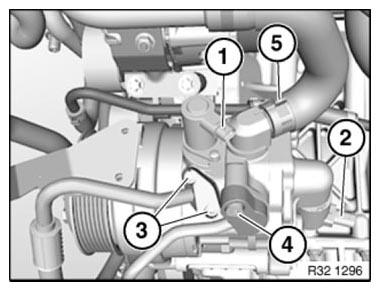

Unfasten plug connection (1, 2) and disconnect.
Release screws (3).
Tightening torque 32 41 13AZ .
Release screw (4).
Tightening torque 32 41 10AZ .
Release hose clamp (5) and detach intake pipe from power steering pump.
Installation note:
Replace hose clamp (5).
Align intake pipe by way of marking to power steering pump.
Make sure hydraulic lines are laid without tension and with sufficient distance to adjoining components.

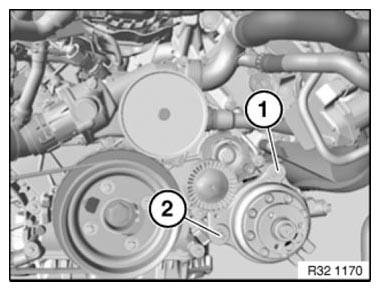

Release screws (1, 2) and remove power steering pump in downward direction.
Tightening torque 32 41 9AZ .
Installation note:
Replace screws.
Make sure screws are installed in correct positions.
- Bolt (1) M10x90
- Screw (2) M10x130
