11-6220 Device

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

0496805 116220 Device MW

In conjunction with: 11 8 082

NOTE: For water tightness check of cylinder head. [Released]

SI number

01 31 09 (604)

Consisting of:

3 = 0496830 Rubber seal
NOTE: (Replacement and wearing part only) [released]

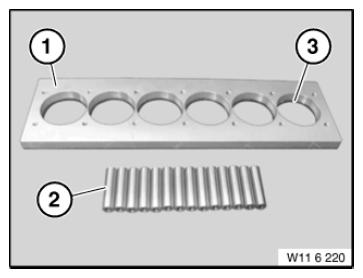

Fig 1: Identifying Device (0496805)
Courtesy of BMW OF NORTH AMERICA, INC.
2 = 0496829 Holding sleeve
NOTE: Set of sleeves together with genuine cylinder head bolts. [Released]
1 = 0496828 Plate
NOTE: Base plate with gasket [released]
