00-9460 Torque wrench

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

0496778 009460 Torque wrench Minimum set: Mechanical tools MW

NOTE: Measuring range 0.40 to 3.00 Nm (accuracy +/-3%). Set 00 9 460 consists of 00 9 461 = torque wrench and 00 9 462 extension. Replaces SWZ 00 9 250 from KW41/2009. [released]

Storage Location

B27

SI number

01 02 10 (618)

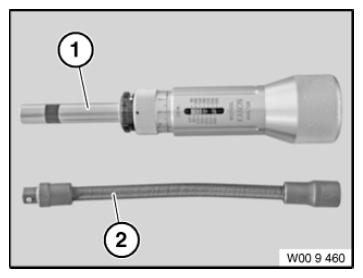

Fig 1: Identifying Torque Wrench (0496778)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

= 0496781 Torque wrench
NOTE: N30LTDK (0.4 - 3.0 Nm accuracy 3%) (replaces special tool 00 9 251 from KW41/2009) Sale of existing inventory and then available only as part of complete tool set 00 9 460 (83 30 0 496 778) - as of 04/04/2012. [Not available separately]
= 0496782 Extension
NOTE: Flexible shaft (Replaces special tool 00 9 552 from KW41/2009) [released]
