00-5010 Puller

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

0490466 005010 Puller Minimum set: Mechanical tools MW

NOTE: (Universal puller) For removing radial shaft seals 00 5 011 for E90 [released]

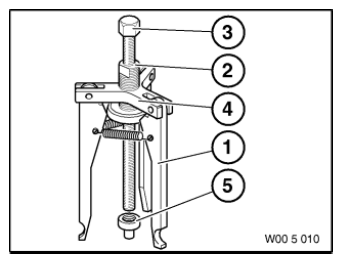

Fig 1: Identifying Puller (0490466)

Courtesy of BMW OF NORTH AMERICA, INC.

Storage Location

A14

Consisting of:

= 0490467 Claw
NOTE: (Extractor claw (3 pieces required)) Discontinued, only available via complete tool [cannot be ordered separately]
= 0490468 Spindle
NOTE: (Guide spindle) Discontinued, only available via complete tool [cannot be ordered separately]
= 0490469 Spindle
NOTE: (Pressure spindle) [Discontinued]
= 0490470 Fixture
NOTE: (Holding star) For holding the extractor claws Discontinued, only available via complete tool [cannot be ordered separately]
= 0490471 Synchronizing key
NOTE: [Discontinued]
