65 50 030 Removing and installing/replacing TV module
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION)
.
NOTE:
Follow instructions for HANDLING OPTICAL FIBRES
.
Necessary preliminary tasks:
- Clamp off BATTERY NEGATIVE LEAD
- Remove LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM

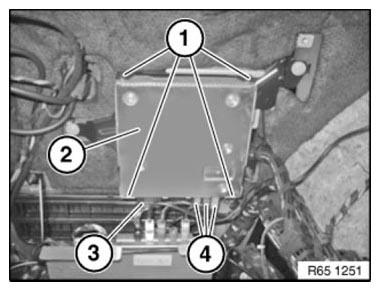

Release screws (1).
Remove TV module (2).
Unlock and detach plug connections (3 and 4).
Installation:
Make sure plug connections (4) are in correct color sequence.
