65 13 160 Removing and installing/replacing rear speaker carrier (in storage shelf)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Lever out speaker cover (1) with special tool 00 9 325 .

Fig 1: Removing Speaker Cover Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs on speaker cover (1) must not be damaged.

Fig 2: Identifying Speaker Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Take out speaker box (2).

Disconnect plug connection underneath and remove speaker box (2).

Installation note:

Speaker box (2) must be exactly seated in groove of storage shelf.

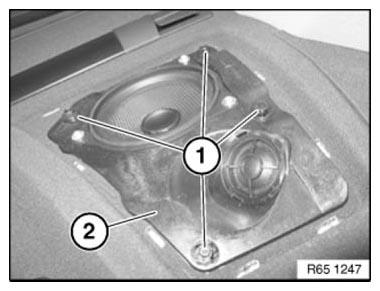

Fig 3: Identifying Speaker Box And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
