65 20 250 Removing and installing/replacing rear telephone aerial

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM
Remove LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM

Unfasten plug connection (1) and disconnect.

Pull telephone aerial lead out of cable penetration (2) in tail panel (3).

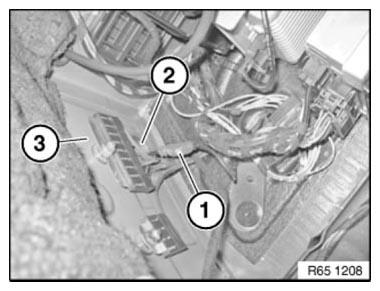

Fig 1: Identifying Plug Connection, Cable Penetration And Tail Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove telephone aerial (2) from bumper guide (3).

Fig 2: Identifying Telephone Aerial, Bumper Guide And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
