65 20 090 Removing and installing/renewing aerial amplifier (diversity)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)

NOTE: Picture for example purposes.
Component may vary within the different series.

Remove supplementary brake light cover (1) in direction of arrow from molded roofliner (2).

Fig 1: Removing Supplementary Brake Light Cover From Molded Roofliner

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) and catches (2) must not be damaged.

Make sure cover is correctly seated on supplementary brake light (3).

Fig 2: Identifying Supplementary Brake Light, Catches And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

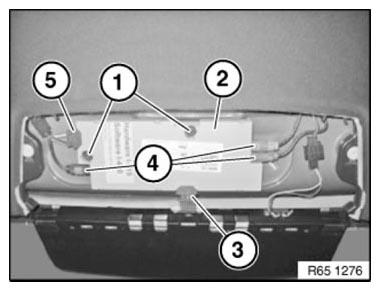

Unlock and disconnect plug connections (3, 4, 5).

Release screws (1).

Remove aerial amplifier (2).

Fig 3: Identifying Plug Connections And Aerial Amplifier And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
