65 20 035 Removing and installing/renewing roof aerial

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove EMPTY HOUSING for roof-mounted aerial

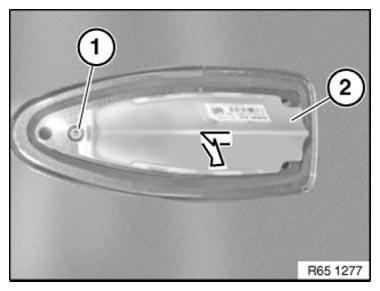

Release screw (1).

Slide roof-mounted aerial (2) in direction of arrow and feed out towards top.

Fig 1: Sliding Roof-Mounted Aerial

Courtesy of BMW OF NORTH AMERICA, INC.

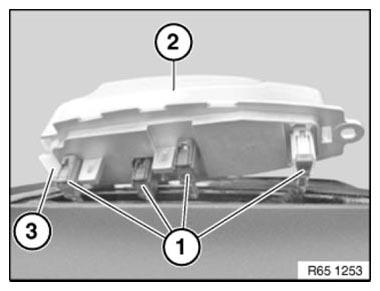

Disconnect plug connections (1) and remove aerial (2).

Retaining lug (3) must be correctly inserted under roof outer skin.

Fig 2: Identifying Plug Connections, Aerial And Retaining Lug

Courtesy of BMW OF NORTH AMERICA, INC.
