41 12 651 Stripping Operations - Replacing Left Luggage Compartment Floor (Tail Panel Or Side Wall Removed)
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.
The following list basically represents the removal sequence.
- Disconnect negative battery cable (FR number: 61 20 600)
- Remove rear left wheel arch cover (FR number: 51 71 041)
- Remove exhaust system (job number: gasoline engine 18 00 020, diesel engine 18 00 018)
- Remove heat shield
- Remove left luggage compartment floor trim panel (job number: 51 47 101)
- Remove left luggage compartment wheel arch panel (job number: 51 47 151)

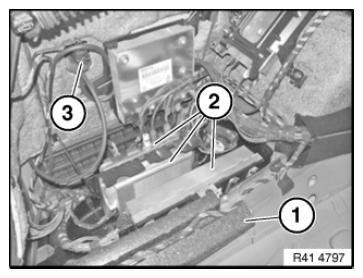

Release holder (1) for wiring harness and lay to one side.
Release holder for control units (2).
Disconnect plug connections and remove control units (2).
Remove tank venting valve (3).

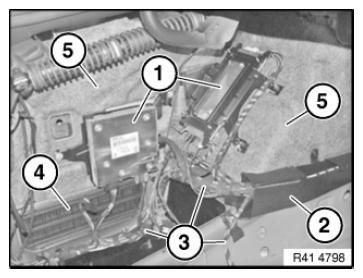

Release holder for control units (1).
Disconnect plug connections and remove control units (2).
Release cable channel (2) and wiring harness (3) and place to one side.
Release latch mechanisms and remove rear ventilation (4).
Remove soundproofing (5).
Installation note:
The rear ventilation (4) must not be damaged. (watertightness).
All latch mechanisms must engage audibly.
