Removal of luggage compartment floor

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

For purposes of clarity, graphic shows most of the tail panel removed.

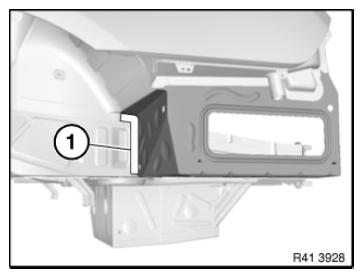

Open welded connections in area (1).

Fig 1: Identifying Boot Floor Laterally And Bore Holes Area

Courtesy of BMW OF NORTH AMERICA, INC.

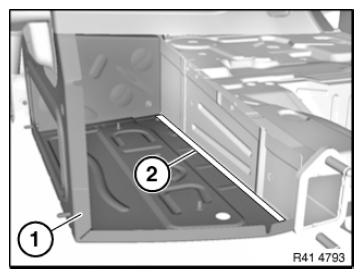

Open welded connections in area (1).

Fig 2: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

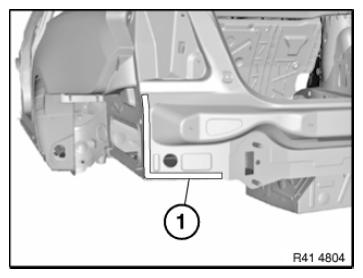

Open welded connections in area (1).

Fig 3: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

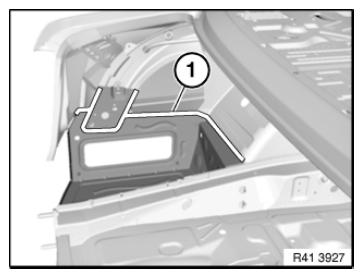

Separate welded connections in area (1) from inside.

Remove the luggage compartment floor.

Fig 4: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.
