Removal of luggage compartment floor

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

View from below.

Open welded connections in area (1).

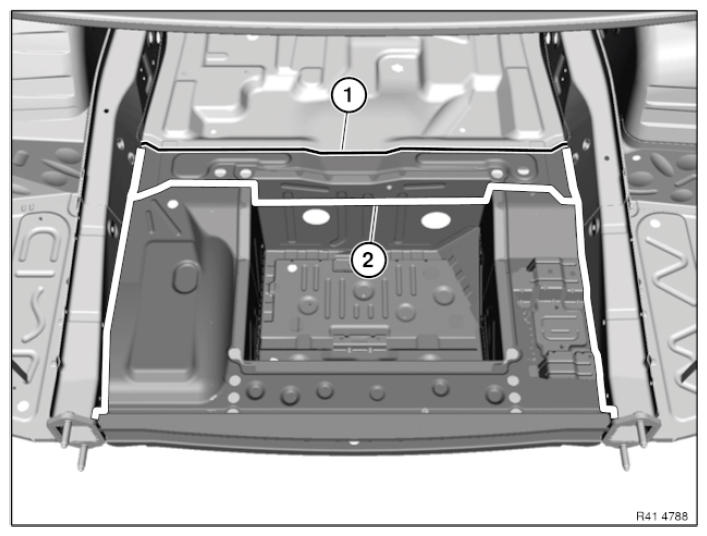

Fig 1: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

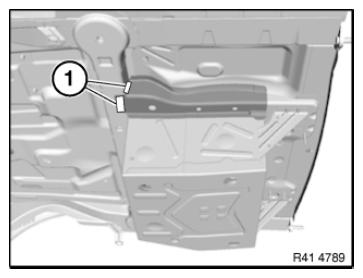

Fig 2: Identifying Outer Metal Panel Severance Cut Mark And Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) approx. 6 mm from edge of component of front luggage compartment floor and disconnect.

IMPORTANT: Cut outer metal panel only.
Open welded connections in area (2).
Remove the luggage compartment floor.

Installation note:

Luggage compartment floor is installed with overlap in area of severance cut (1).
