New part preparation

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Set down luggage compartment well and adjust in combination with cross member and tail panel to fit and secure.

In areas (1) and (2) set 4.2 mm dia. holes for blind rivets.

Area	Number
1	5 of
2	8

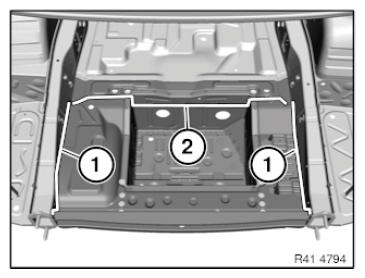

Fig 1: Identifying Luggage Compartment Floor Blind Rivets Hole Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust side member to fit and secure.

In areas (1) to (4), set 4.2 mm dia. holes for blind rivets.

Area	Number
1	1
2	4
3	4
4	2

In area (5) prepare new parts for MAG welding.

Remove new parts and deburr bore holes.

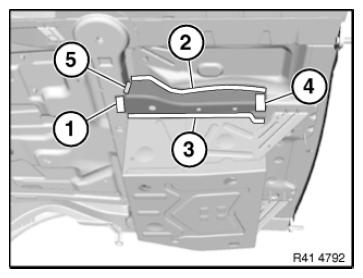

Fig 2: Identifying Side Member Blind Rivets Holes Area

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind new parts and body in area of bonding surfaces.
