New part preparation

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Operation is partially described on the left side. Right side identical.

Open welded connections in area (1).

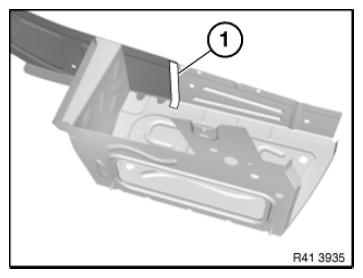

Fig 1: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Remove metal section (2).

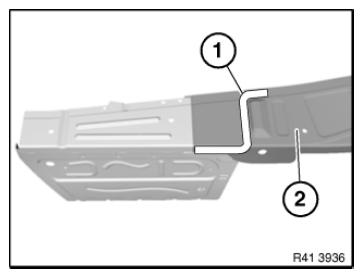

Fig 2: Identifying Metal Section And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To adjust new parts to fit, bend side member end plate (1) outwards slightly.

Adjust new parts, side members to fit with alignment bracket or universal mount.

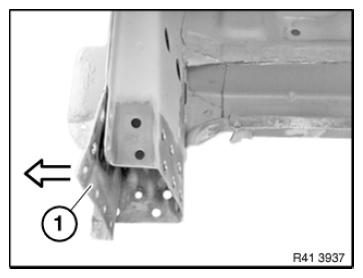

Fig 3: Bending Side Member End Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Set down luggage compartment well and adjust in combination with cross member and tail panel to fit and secure.

In areas (1) and (2) set 4.2 mm dia. holes for blind rivets.

Area	Number
1	5 of
2	8

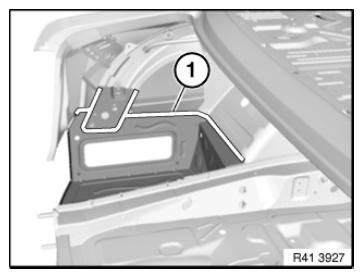

Fig 4: Identifying Blind Rivets Hole Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust side member to fit and secure.

In areas (1) to (4), set 4.2 mm dia. holes for blind rivets.

Area	Number
1	1
2	4
3	4
4	2

In area (5) prepare new parts for MAG welding.

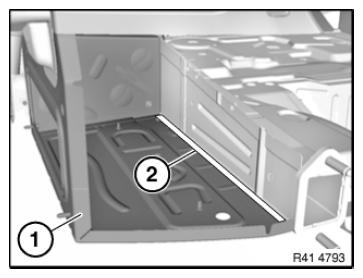

Fig 5: Identifying Blind Rivets Hole Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust boot floor laterally (1) to fit and secure.

Set 5 4.2 mm dia. bore holes in area (2).

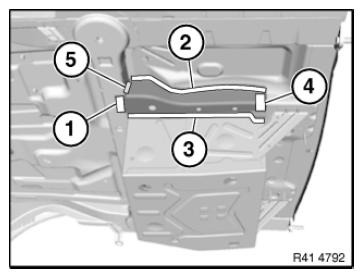

Fig 6: Identifying Boot Floor And Bore Holes Area

Courtesy of BMW OF NORTH AMERICA, INC.

Set 3 4.2 mm dia. bore holes in area (1).

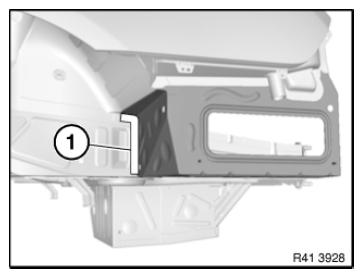

Fig 7: Identifying Bore Holes Area

Courtesy of BMW OF NORTH AMERICA, INC.

Set 11 4.2 mm dia. bore holes in area (1).

Remove new parts and deburr bore holes.

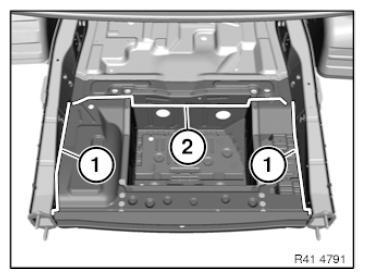

Fig 8: Identifying Bore Holes Area

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind new parts and body in area of bonding surfaces.
