Installation of side member

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Install new parts with alignment bracket or universal mount and weld analogue to series standard:

Extension, side member
Extension, end plate side member
Mounting, bumper

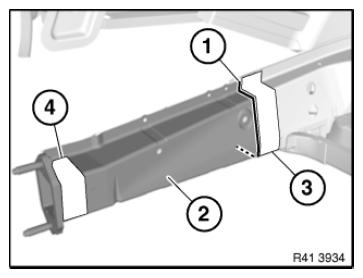

Weld extension for end plate side member (2) in areas (3) and (4) the same as series.

Fig 1: Identifying Side Member Extension, Severance Cut Mark And Welded Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

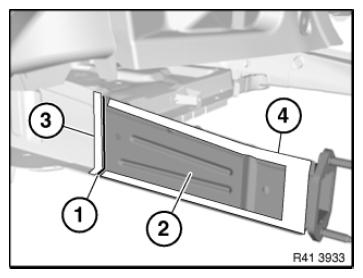

Weld extension for side member (2) in areas (3) and (4) the same as series.

Fig 2: Identifying Side Member Extension, Severance Cut Mark And Welded Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.
