Preparation of new part

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Adjust new part in conjunction with side panel in front to fit.

In area of bonding surfaces (1), set 2 4.2 mm dia. bore holes (2) for blind rivetsN3.

Remove new part and deburr holes.

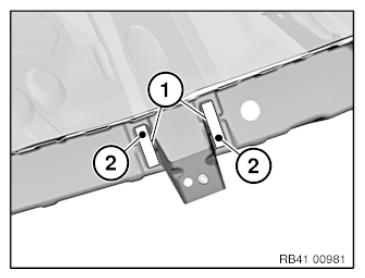

Fig 1: Identifying Bonding Surfaces And Blind Rivets Bore Holes

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind bonding surfaces down or off.

Fit in new part.

In area of adhesive surface (1), drill a 4.2 mm dia. bore hole (2) for blind rivet N3.

Remove new part and deburr holes.

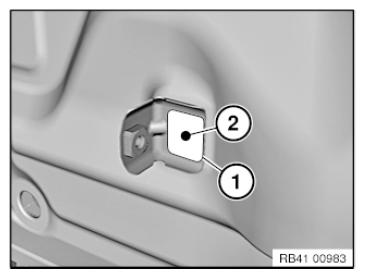

Fig 1: Identifying Adhesive Surface And Blind Rivet Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind bonding surfaces down or off.
