52 25 075 Removing and installing/replacing decorative strip on center armrest at rear side left or right
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove SWITCH COMBINATION for rear seat adjustment

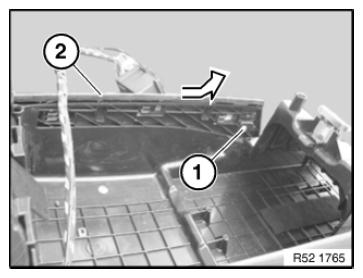

Release screw (1).
Raise locking tab and remove decorative trim (2) in direction of arrow.
